SL1 Non-Contact Cleaner

Very compact and efficient.

KELVA Cleaner Head Type SL1 for Double-Sided, Non-Contact Web Cleaning.

Contact us

KELVA’s non-contact web cleaner head SL1 has the capacity of a larger web cleaner head, but in a compact flat size. With the choice of a 24V DC bar, only one bar is necessary for low web speeds in many cases. This will further decrease size and will make a power unit redundant. Their 4-chamber concept easier balances the web, and the venturi inlet increases the suction ability of surrounding dust. The SL cleaner heads fit almost any application like paper, tissue, textile, film and nonwoven with widths from 750 up to 1 600 mm

The profiles are closed at the end and coupled together by endplates. On these endplates pneumatic cylinders are mounted. The top half of the suction head can be lifted by means of these cylinders to create enough space for web treading and service.

The upper half of the web cleaner unit are equipped with adjusting bolts to control the distance between the halves. Under normal conditions these adjustments are carried out only during installation, but in case of an exceptional web thickness, changes can be done.

Highlights:

  • Web width up to 1600mm
  • 4-chamber solution for easier balancing of the web
  • Compact size
  • Multiple antistatic bar options 115/230 VAC, or 24VDC externally mounted for higher efficiency
  • Venturi inlet for better suction of surrounding dust
  • Easy adjustment of upper and lower part of the head

Specifications:

  • Web width: 750-1600 mm
  • Application: Almost any, i.e. paper, tissue, textile, film, non woven
  • Power: 24VDC bars, 115/230V,  50/60 Hz for anti-static device
  • Pneumatic requirement: 5 bar
  • Air connections: Single sided up to 800 mm wide webs
  • Options: Multiple antistatic choices

Special models:
SL2 – Special slot configuration for low tension webs as fabrics and thin film/foil

Typical applications

Film + Foil

Special web cleaning solutions for eliminating dust and contaminants from fragile and highly static foil and thin-film surfaces.

Paper + Solid Board

Special web cleaning solutions for eliminating dust and lint in the paper and cardboard production industry.

Textiles + Nonwoven

Special web cleaning solutions for eliminating dust from low tension fabric webs.

Choosing the ideal filter/fan unit for your KELVA non-contact web cleaner
High-performance filter systems from KELVA are an important component of non-contact web cleaning systems, as they ensure a constant supply and removal of air depending on the width and speed of the web and the type of material to be cleaned. Learn more

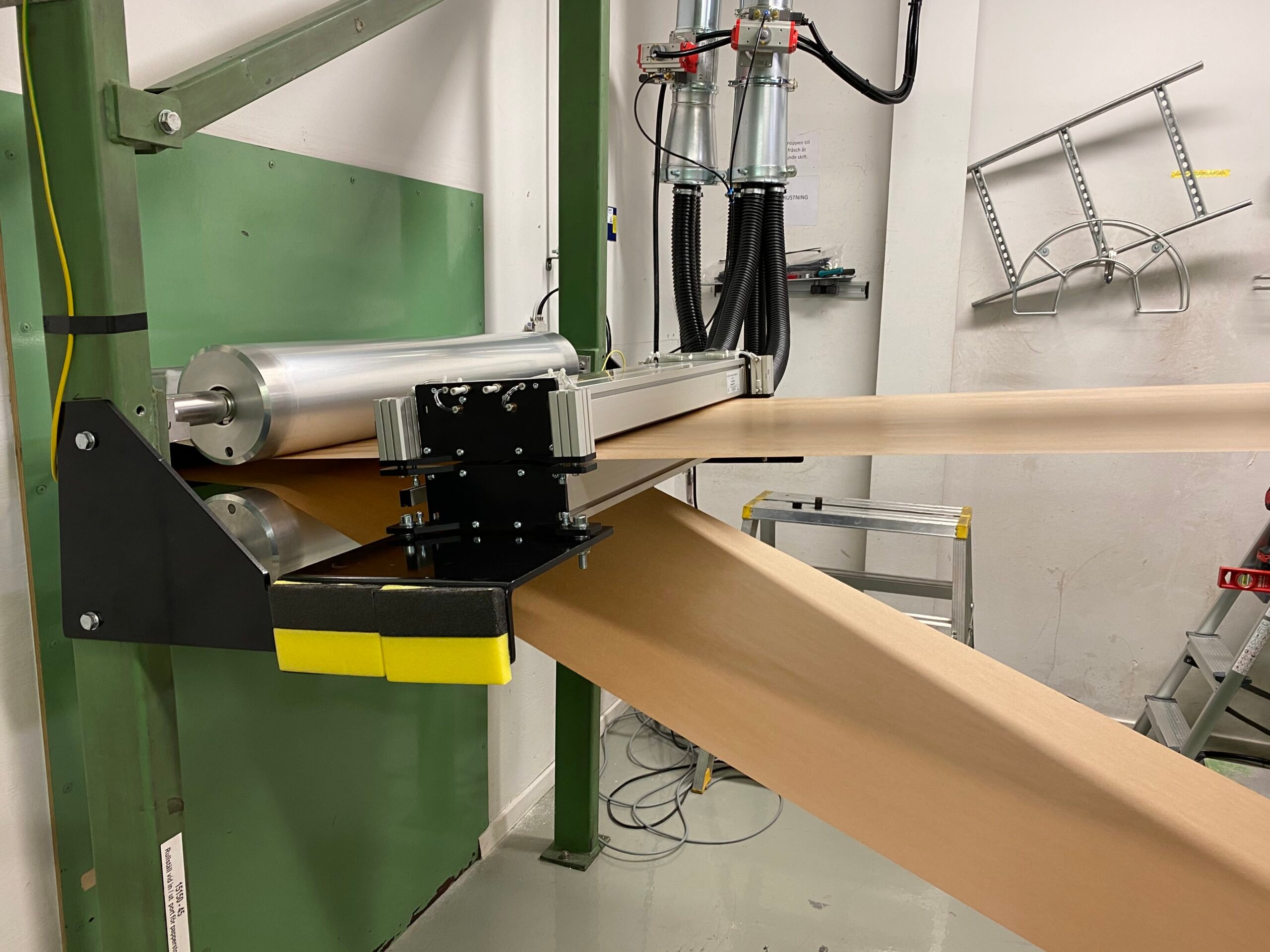

Installation example
